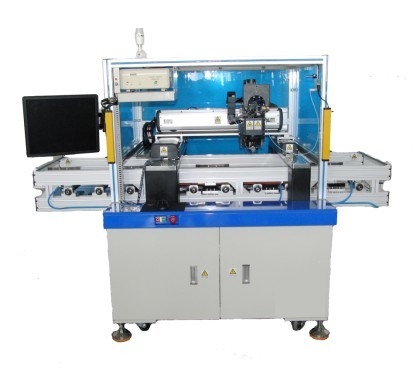

EV Battery Wire Bonding Machine-3753A

Main application:

18650,26800, 32700,Prismatic lithium battery wire bonding.

Advantage:

1,First wire bonding machine using rotary bonding head in China .

2,Digital & automatic frequency tracking ultrasonic system.

3,Digital pressure adjustment system.

4,With advance image recognizing system.

5,Full closed-loop motion control system.

6,With like bad bonding or wire feeding block etc. full error alarm, ensure bonding quality.

7,Optional automatic bond tester.

8,Manual upload,automatic recognition and bonding,manual download.

Specification:

Power:220v,50Hz,800w.

Suit for aluminum wire:125-500um(5-20mil)

Ultrasonic frequency:60kHz.

Power:0-30w. automatic changing between first bonding and second bonding.

X axis accuracy:0.02mm.

Time:10-500ms. (multiple channel.)

Bonding pressure:50-1200g(multiple channel)

Bonding speed:2s/wire.depending on other situation.

Working area: XY:400*400 MM with IN and Out facility, with wending range 400MM-800MM Z:50mm. C:+-90degree.

Dimension:2000x1110X1550 (L*W*H)

Weight:~800KG
