Name: Automatic Battery Pack Spot Welding Machine(Double Side)
Brand: Supo (Xiamen) Intelligent Equipment Co.,Ltd
SKU: HDL6040B 10000A
Availability: InStock

Home Products Lithium Battery Spot Welder

Automatic Battery Pack Spot Welding Machine(Double Side)

Product Details:

Place of Origin:	CHINA
Brand Name:	AWT
Model Number:	HDL6040B 10000A

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Used for 18650,21700 26650,32650 cylinder battery pack automatic spot welding

Features :

1. Using 10 inch LCD touch screen and embedded industrial control intelligent operating system;
2. Top Quality servo motors and precise linear module ensure accurate welding, stable displacement and long service life;
3. Program settings support arbitrary dot matrix and standard array mode, function of CAD mapping, storing 99 groups of programs;
4. Continuous starting, breakpoint starting, virtual welding, alarm of leak welding and repair welding.
5. Welding power supply has its own current monitoring function which can monitor the actual output current in real time.

6. Perfect design, light lifting and unloading of fixtures, good rigidity of motion structure and long-term stability of welding accuracy.

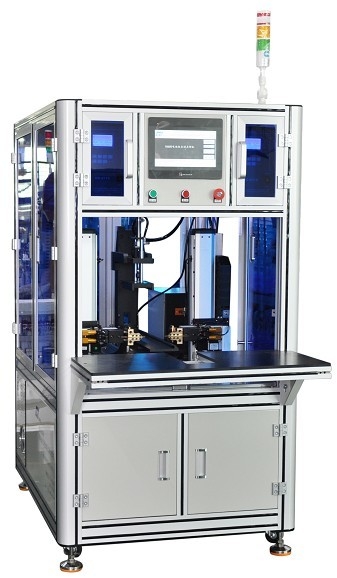

Automatic Battery Pack Spot Welding Machine(Double Side) 0

Motion platform power input:	AC 220V/60HZ
Power consumption:	1500W
X-axis Stoke:	600mm 18650 Max.30PCS, 32650 Max.16PCS
Y-axis Stoke:	400mm 18650 Max.18PCS, 2650 Max.9PCS)
Loaded Qty	480pcs (standard 18650 lithium battery)
Motor drive stroke:	50mm
Positioning cylinder stroke:	100mm
Motion module:	Ball Screw TBI+Linear Guide Hiwin
Driving mode:	Servo Motor Drive
Spot welding efficiency:	3800-4500PCS/Hrs(4 Welding Points)
Electrode diameter:	∮1.8-2.0mm
Electrode heat dissipation:	Forced air cooling
Working pressure:	0.2-0.8MPa
Welder power supply:	10000A Transistor Welder
Dimension	1000mm×1200mm×1800mm
Weight	400KG
