Name: Automatic Prismatic Cell Sorting Machine
Brand: Supo (Xiamen) Intelligent Equipment Co.,Ltd
SKU: AWT-FX08
Availability: InStock

Home Products Battery Sorting Machine

Automatic Prismatic Cell Sorting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	AWT
Model Number:	AWT-FX08

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Introduction

The prismatic aluminum shell lithium battery automatic sorting machine is a testing and sorting equipment used for the internal resistance, voltage and other parameters of prismatic batteries. It comes with a high-precision internal resistance, voltage automatic testing and scanning system. The equipment accurately sends the battery to the designated grade based on the internal resistance and voltage values set on computer software. Compared with manual operation, it has greatly improved sorting efficiency and accuracy. Humanized appearance design makes operation and debugging clear at a glance. The built-in component design makes the appearance more concise and efficient, reducing personnel's misjudgment of sorting gears. Multiple modes of sorting can be set, with controllable accuracy, and sorting data can be stored and document tables can be generated.

Scope of application:

Applicable prismatic type batteries:

Thickness: 20-80mm

Width:100-200mm

Height:100-250mm

For all the regular cells including :2265146,28148115,27148140,27174200,48174132,50160116,54174112,54174202

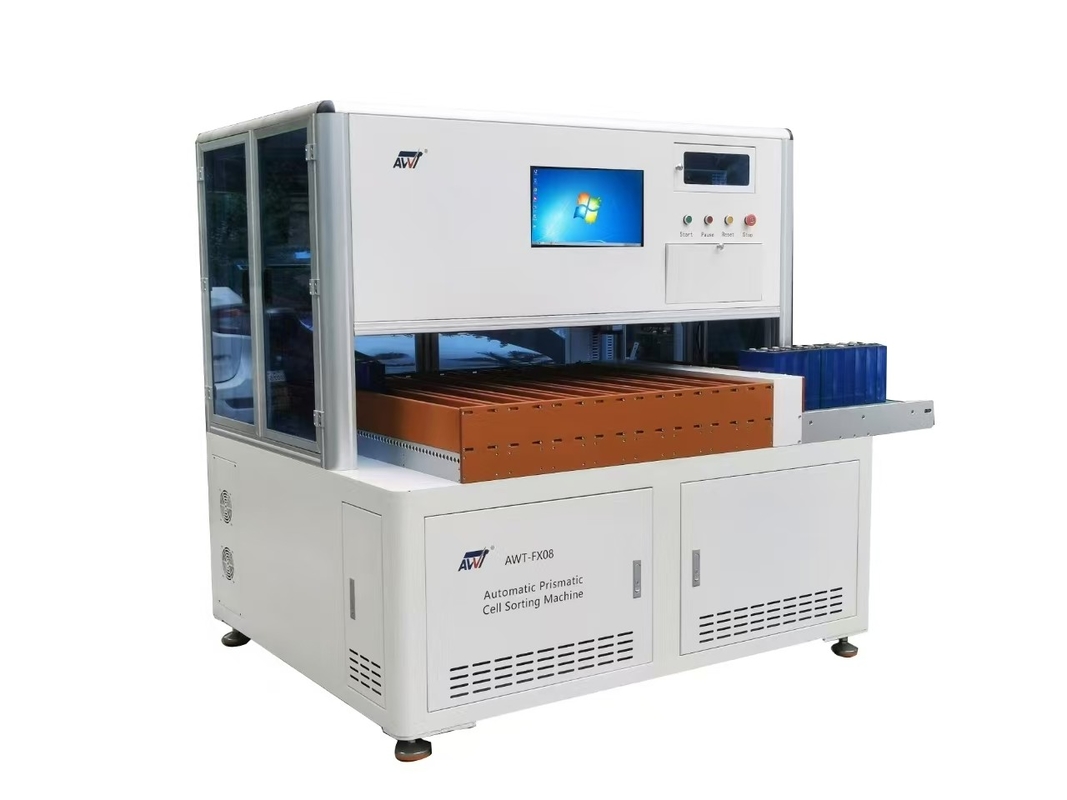

Automatic Prismatic Cell Sorting Machine 0

Equipment configuration list

Name	Brand	Model	Service life	Warranty
IPC	Advantech		5 years	1 year
Internal resistance tester	Hopetech	3563	5 years	1 year
Servo motor	Panasonic or Lei Sai		5 years	1 year
PLC	Panasonic	FP-X	5 years	1 year
Stepping motor	Lei Sai		5 years	1 year
Screw guide rail	Taiwan HIWIN		5 years	1 year
Relay inductor	OMRON		5 years	1 year
Pneumatic components	AirTAC		2 years	1 year
Computer display screen	Philips/AOC		5 years	1 year
