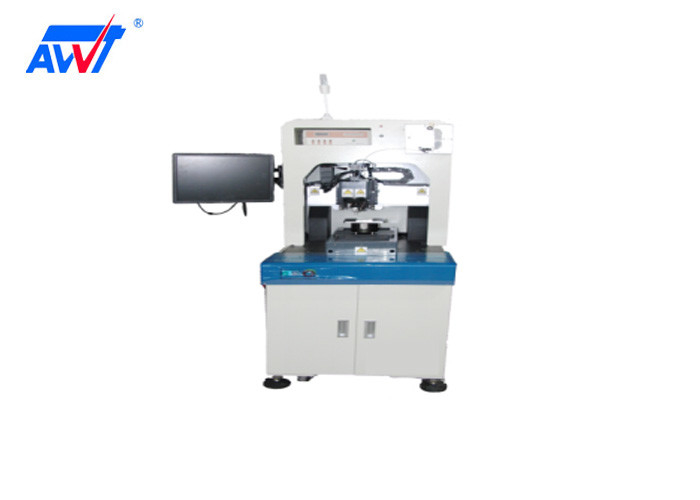

Automatic Wire Bonder Automatic EV Battery 18650 Wire Bonding Machine Model: SUPO-3741
Only Company with mature technology and Mass EV battery production experince by Wire Bonding Technology
Model: SUPO-3741
XY Stroke 200*200MM
Main application:
18650,26800,lithium battery wire bonding.
Advantage:
1,First wire bonding machine using rotary bonding head in China .
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance image recognizing system.
5,Full closed-loop motion control system.
6,With like bad bonding or wire feeding block etc. full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload,automatic recognition and bonding,manual download.
Specification:
| Power: | 220v,50Hz,800w. |
| Suit for aluminum wire: | 125-500um(5-20mil) |
| Ultrasonic frequency: | 60kHz. |
| Power: | 0-30w. automatic changing between first bonding and second bonding. |
| X axis accuracy: | 0.02mm. |
| Time: | 10-500ms. (multiple channel.) |
| Bonding pressure: | 50-1200g(multiple channel) |
| Bonding speed: | 2s/wire.depending on other situation. |
| Working area: | XY:200*200 MM Z:50mm. C:+-90degree. |
| Dimension: | 2000x1110X1550 (L*W*H) |
| Weight: | ~800KG |
Equipment features:
- Manual feeding, automatic identification and positioning, automatic bonding, manual feeding (into the back-end station).
- Specially designed for Electrical Vechicle Battery Pack Bonding Production
- Cuold be customized and used according to the actual situation.
- This machine is mainly composed of frame components, XYZ feed components, automatic feeding mechanism, wire feeding mechanism, fixture positioning and pressing components, welding head mechanism and console.
- The precision ball screw drive is used in X YZ module. The repetitive positioning accuracy of distance is less than (+0.02 mm) and the angular positioning accuracy is (+1 degree).
- The control system uses industrial computer and motion control card to control the operation of private service motors.
- The equipment is easy to operate and maintain, the control interface is friendly, the parameters are set digitally with high flexibility. Fast clamping, single button start, simple and safe personnel discharge.
- L Left-in and right-out can be transported by on-line multi-segment track, and can be directly docked with the production line.
