Name: 100V~500V Battery Charge Discharge Test Equipment For Lab / High Level Application
Brand: Supo (Xiamen) Intelligent Equipment Co.,Ltd
SKU: AWT-RCDS-100V~500V
Availability: InStock

Home Products Battery Pack Test System

100V~500V Battery Charge Discharge Test Equipment For Lab / High Level Application

Product Details:

Place of Origin:	China
Brand Name:	AWT
Certification:	As required
Model Number:	AWT-RCDS-100V~500V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden
Delivery Time:	15-20 days
Payment Terms:	T/T
Supply Ability:	50 Sets Per Month

Contact Now

Detailed Product Description

Name:	Battery Pack Test System, Regenerative Battery Pack Test System	Application:	Lab And High Level Application
Voltage Range:	0~100…500V	Current Range:	0 -10A/20A/60A/100A/200A···
Voltage Accuracy:	.1%FS+0.1%RD/0.05%FS+0.05%RD	Current Accuracy::	0.1%FS+0.1%RD/ 0.05%FS+0.05%RD
Highlight:	battery pack tester , battery charge discharge test equipment

Battery Pack Test System Regenerative Battery Pack Test System 100V~500V Charge and Discharge Test System

Features
Support single cell voltage consistency testing;
Support off-line, anti-reverse, data protection;
Support RS485, CAN and other battery packcommunicationprotocols;
The discharge energy feedback efficiency ≥90% to grid;
High power factor value,PF=0.99;
Small size, high energydensity.

Voltage Range:	0~100…500V
Accuracy:	0.1%FS+0.1%RD/0.05%FS+0.05%RD
Resolution:	1mV
Current Range:	0 -10A/20A/60A/100A/200A···
Accuracy:	0.1%FS+0.1%RD/ 0.05%FS+0.05%RD
Resolution:	1mA
Current responsetime	≤10ms
Data samplingconditions	Time ≥10ms, voltage ≥1mV, current≥1mA
CommunicationInterface LAN	Optionalfunctions Auxiliary functionmodule
Monomervoltage	DC:0~5V ; Accuracy:±0.02%FS/±0.1%
Temperature	-40℃~150℃;Accuracy:±1℃
BMS Communicationmodule	Support standard DBC file loadfunction
Third-party deviceintegration	Constant temperature and humidity box, customized connector,etc.

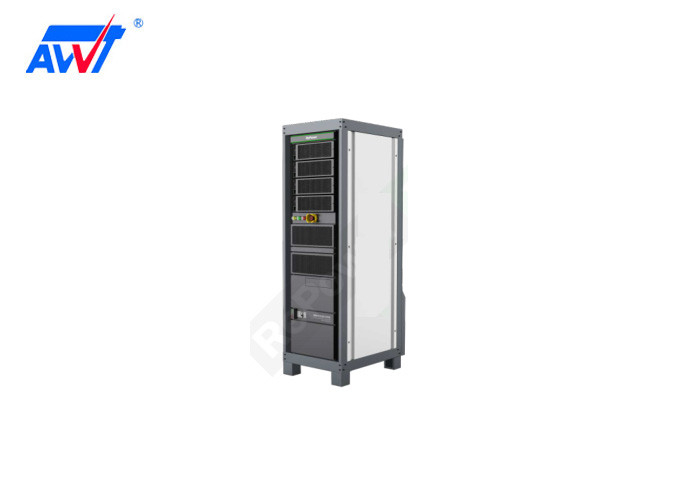

100V~500V Battery Charge Discharge Test Equipment For Lab / High Level Application 0

100V~500V Battery Charge Discharge Test Equipment For Lab / High Level Application 1

100V~500V Battery Charge Discharge Test Equipment For Lab / High Level Application 2

100V~500V Battery Charge Discharge Test Equipment For Lab / High Level Application 3
