AWT Battery Assembly Line / Automatic Battery Production Line For Electrical Car

AWT Battery Assembly Line / Automatic Battery Production Line For Electrical Car

AWT Battery Assembly Line / Automatic Battery Production Line For Electrical Car
AWT Battery Assembly Line / Automatic Battery Production Line For Electrical Car
AWT Battery Assembly Line / Automatic Battery Production Line For Electrical Car
Product Details:
Place of Origin: China
Brand Name: AWT
Certification: as required
Model Number: AWT-Assembly Line
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Battery Pack Production Line, 18650 32650 Pack Production Line Application: Ebike Escooter ,Electrical Car
Turkey Key Solution: Yes Turkey Key Solution With Material Mix. Workshop: 5000-1000 SQM
Power: AC 380V 220V Air Pressure: 0.6-0.8Mpa
Highlight:

battery assembly machine

,

battery production line

,

AWT Battery Assembly Line

AWT Battery Assembly Line Automatic Battery Pack Production Line



Battery Pack Production Line Equipments List:



No. Equipment Name Model Qty

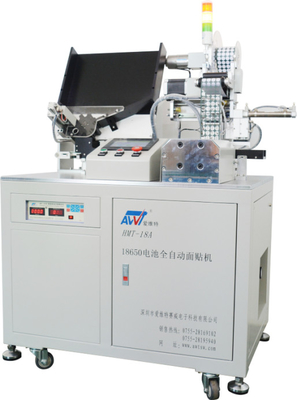

1 Automatic 18650 insulation paper sticking Machine HMT18A 1

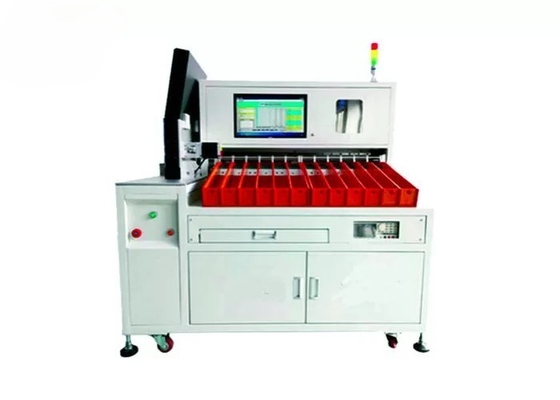

2 Automatic 18650 Battery Grading Sorting Machine(10 grades) HFX65-10 1

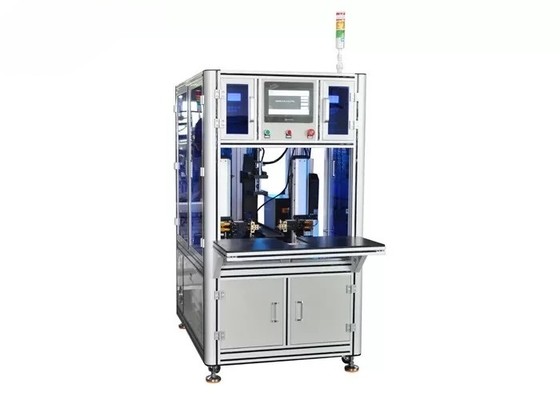

3 Automatic Battery Pack Spot Welding Machine(Double Side) HDL6030 1
4 Precision Spot Welding Machine HD-2119 1
5 Lithium Battery 18650 32650 IR Tester AWT-205 2
6 Lithium Battery 18650 32650 Capacity Testing AWT-8C 1
7 Lithium Battery Pack BMS Testing Machine 24Series AWT-2408 1

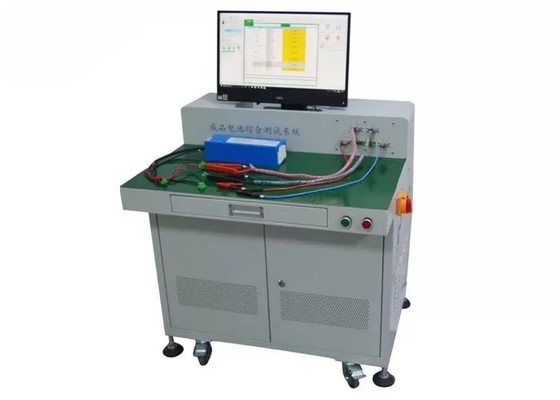

8 Lithium Battery Pack Final Testing Machine AWT-1012 1

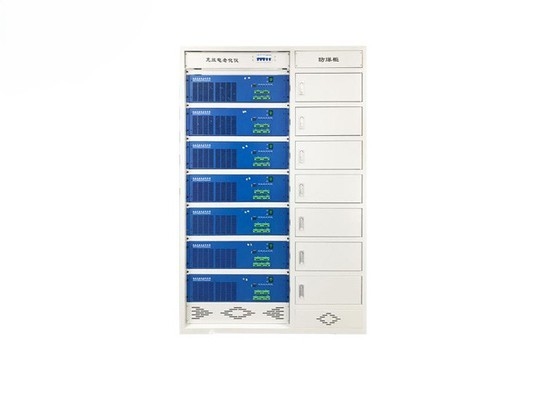

9 Lithium Battery Pack Aging Machine AWT-1020 1




Notice on AWT  Equipments

We only produce high quality machine to ensure the stability and no compromise on quality:

Drive Mode Welding Speed Price Level
Pnuematic Drive 2800-3500PCS/Hrs(4 Welding Points) Low
Servo Motor Drive 3800-4500PCS/Hrs(4 Welding Points) High





Spot Welder Input Voltage Nickel Thickness Price Level
Stored Energy Welder AC 220V/50HZ 5000A Nickel Alloy≦0.2mm Pure Nicel≦0.15mm Low
DC Inverter Welder AC 380V/50HZ 5000A Nickel Alloy≦0.2mm Pure Nicel≦0.15mm Middle
DC Inverter Welder AC 380V/50HZ 8000A Pure Nicel≦0.2mm,slot Nickel≦0.4mm High
Transistor Welder PD-6000A/10000A Pure Nicel≦0.2mm,slot Nickel≦0.4mm

Expensive





AWT Battery Assembly Line / Automatic Battery Production Line For Electrical Car 0AWT Battery Assembly Line / Automatic Battery Production Line For Electrical Car 1

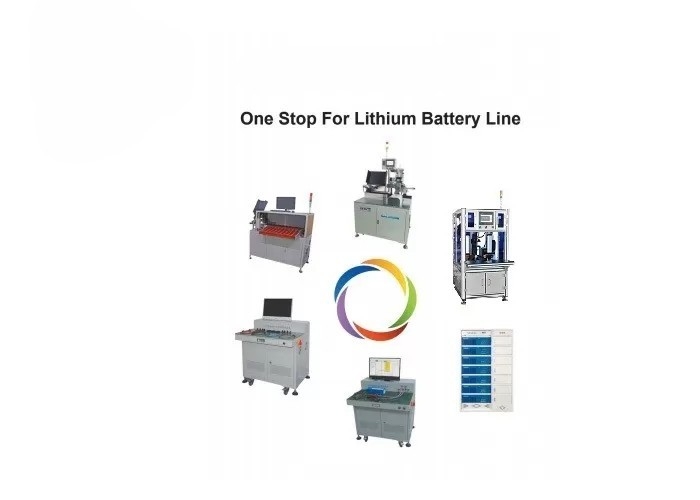

One Stop For Lithium Battery Line

Established in 2004
Located in Shenzhen City
Engaged in Lithium Battery For More than 15 Years


Our Main business:

Automatic welding equipment
Lithium battery PACK assembly Automation equipment
Turnkey Solution Provider

AWT Battery Assembly Line / Automatic Battery Production Line For Electrical Car 2

Please contact us for any questions:
John Yang-Director and International Market Leader
Cell/Wechat/whatsapp:+86-13959254228
Email:johnyang@supo-awt.com
